ACU (Air Conditioning Unit) MODELS
Diesel - Electric Mobile Air Conditioning Units for Military Aircraft
CF33
Specifications
Nominal air flow rate: 18 kg/min 550 mb
Cold air outlet temperature: 10°C
Outlet air temperature anti-condensation mode: = +28°C
Power supply: 50/60Hz - 400V - 3 phases - 125 A
Dimensions: 2800 x 2130 x 1600 mm
Weight: 2905 kg
EMC: MIL STD 461 50Vm
Airlift (Fwd/Low/High): 9g / 4.5g / 2g

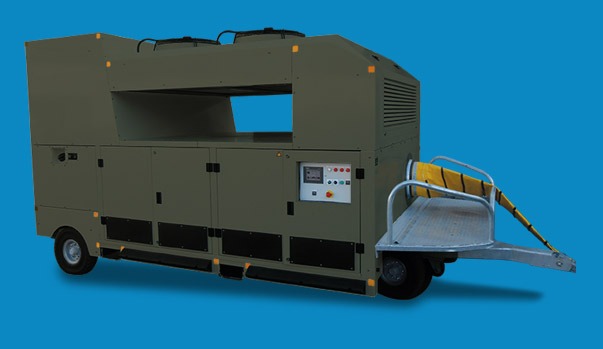

GF/CF15
Specifications
Nominal air flow rate: 1.5 kg/s
Cold air outlet temperature: -5/+5°C
Hot air outlet temperature (option): ≤ +65°C
Diesel engine: Deutz / electric alternative
Dimensions: 5000 x 2220 x 2223 mm
Weight: 4500 kg
GF/CF35
Specifications
Nominal air flow rate: 3.5 kg/s
Cold air outlet temperature: -5/+5°C
Hot air outlet temperature (option): ≤ +65°C
Diesel engine: Deutz / alternative électrique
Dimensions: 6290 x 2530 x 2820 mm
Weight: 8500 kg
GF/CF50
Specifications
Nominal air flow rate: 5.0 kg/s
Cold air outlet temperature: -5/+5°C
Hot air outlet temperature (option): ≤ +65°C
Diesel engine: Deutz / electric alternative
Dimensions: 6295 x 2660 x 3000 mm
Weight: 10100 kg
ACU
Guinault GPUs for military applications are based on standard civilian models and incorporate special functions related to the extreme operating environment, electromagnetic compatibility and airlift. This particularly compact, easily deployable combat aircraft range has been specially designed for this application.
The Guinault range covers requirements from 0 to 6.5 kg/s, +1°C to -10°C
